X Series Sliding Vane Pumps

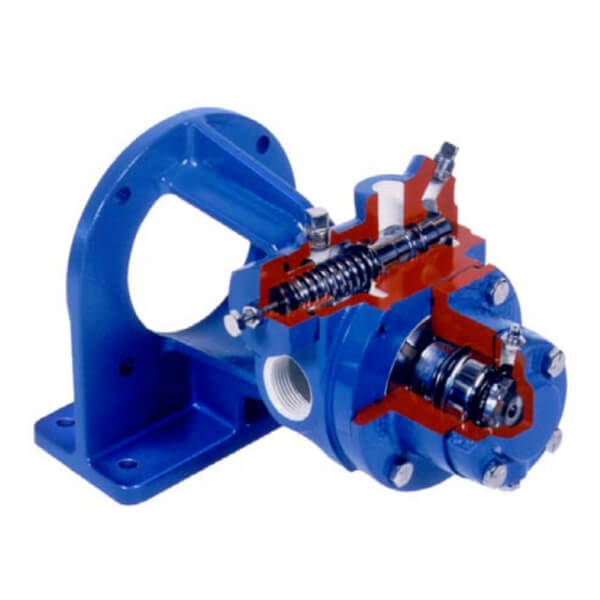

The X1 Series pumps, part of the Iron Line, feature a thermal shock-resistant ductile iron construction with external ball bearings isolated by mechanical seals. Designed for direct coupling to standard electric motors, they are ideal for tight installation spaces.

Models and Installation:

• XB1 and XB1P Models: Base-mounted for portable or fixed pad installations.
• XF1 and XF1P Models: Include an integral bracket for direct mounting to NEMA C-face motors.

Specifications:

• Port Size: 1-inch NPT
• Flow Capacities: 5 to 14 gpm (19-53 L/min)
• Operating Speed: Up to 1,750 rpm
• Fluid Viscosity: Handles up to 100 SSU (20 cP)
• Enhanced Capacity: XF1P and XB1P models offer 50% greater capacity than XF1 and XB1.

Additional Features:

• Dual-Acting Relief Valve: Equipped with an integral valve to return excess flow to the tank when fitted with a return pipe.

Choose the X1 Series for efficient, space-saving pump solutions with reliable performance.

OEM by Blackmer PSG Dover is provided by KI Pumps of Waukesha, WI, recognized globally as a leading supplier of positive displacement and sliding vane pumps and their components.
