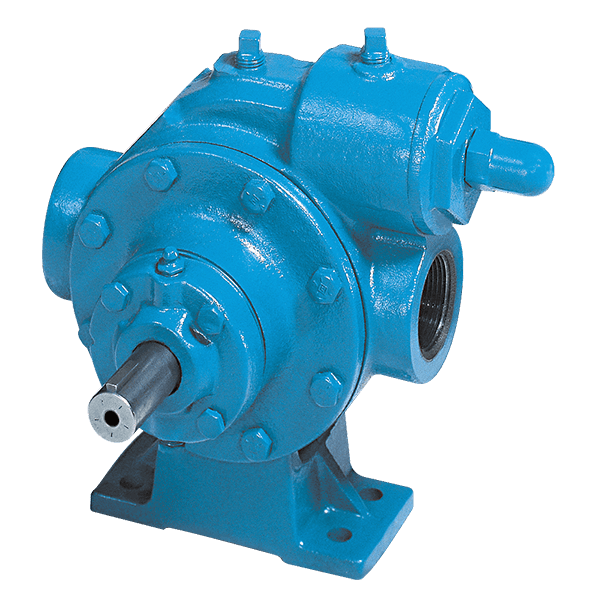

XL1.5 Sliding Vane Pump

High-Speed Pumps for Use in Processing, Filling and Transfer Applications

These durable motor speed pumps offer capacities from 9 to 35 U.S. gpm (34-132 L/to a NEMA C-face motor. This bracket also allows the pump body to be rotated to simplify hookup to piping systems.

Available with 1.25 or 1.5-inch NPT tapped ports, all models are equipped with an internal relief valve, and a replaceable casing liner and end discs for easy rebuilding of the pumping chamber if ever necessary. The XRLF 1.25-inch model features a special liner, which offers lower flow rates than the XL 1.25-inch pump. In addition, these pumps feature cavitation suppression liners to reduce noise, vibration and wear. is 150 psi (10.34 Bar) for all models.

OEM by Blackmer PSG Dover is provided by KI Pumps of Waukesha, WI, which is acknowledged worldwide as the leading supplier of positive displacement and sliding vane pumps and their components.
